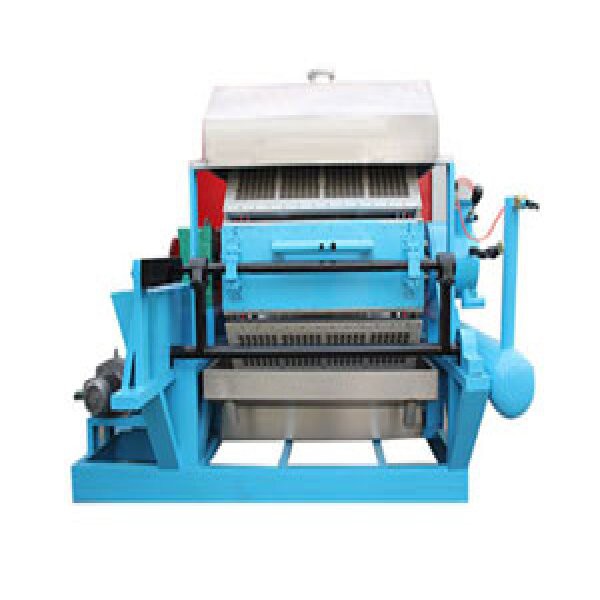

Product Description
✔ Model: DT 3×8, 4×8, 5×8, 6×8
✔ Output: 3000-7000p/h (can be adjusted to adapt to different moulds)
✔ Mould Configuration: 24/32/40/48 stations (support for quick mould change, compatible with egg tray/fruit tray/electronic packaging, etc.)
✔ Power System: 4kW motor + Taiwan Tamzi high-precision splitter (error of ± 0.05°) + worm-gear speed reducer
Material Standards of 8-side rotary drum egg tray machine
✔ Contacts Slurry part: 304 stainless steel (mould board/slurry tank/pipe)
✔ Wear-resistant parts: 30mm copper vacuum pumping disc (corrosion resistant, life expectancy increased by 30%)
✔ Bearing: Harbin bearing (core load bit Japan NSK)
Industry application
✔ Poultry breeding industry: egg tray/box (anti-vibration and breathable design)
✔ Fresh produce logistics: fruit trays (customised honeycomb cushioning structure)
✔ Industrial packaging: bottle trays/electronic product liners ( Precision Blister Moulding)
Technical Highlights of 8-side rotary drum egg tray machine
✔ Precision Transmission
Taiwan Divider + Solenoid Valve Control for Precision Intermittent Motion of Eight Side Drums (stopping moulding at 45° per turn).
✔ Energy-saving design
Vacuum pump water return system (wastewater → water return pool → pulper, water saving rate ≥60%).
✔Drying customisation
Optional single/multi-layer metal drying line or earth conveyor drying, supporting multiple heat sources such as coal/natural gas/biomass burning.
Structure of 8-side rotary drum egg tray machine
Working Principle of 8-Side Egg Tray Machine
Firstly, raw materials such as waste paper are put into the pulper, while water is injected into the pulping storage tank. The pulp in the pulp storage tank is mixed evenly by the mixer and then transported to the pulp supply tank.
In the supply tank, the pulp is mixed to the appropriate consistency and then fed into the moulding machine (i.e. egg tray machine) for moulding.
After moulding, the egg trays are transported by conveyor belt to the dryer for drying. The dried egg trays are then received and packaged.
The system is also equipped with a water recycling device: a vacuum pump pumps the unused water from the moulding machine to a return tank, which then redirects the water to the pulper and the storage tank, thus recycling the water.
This design not only improves water utilisation, but also reflects the concept of environmentally friendly production.
Customised service
✔ Mould development (provide 3D drawings for customised shaped pallets)
✔ Thermal solution (optimised configuration according to regional fuel cost)
Specifications of 8-side egg tray making machine
Note: The actual price needs to be combined with the configuration plan and logistic costing, please contact the sales manager for an exclusive quotation.
