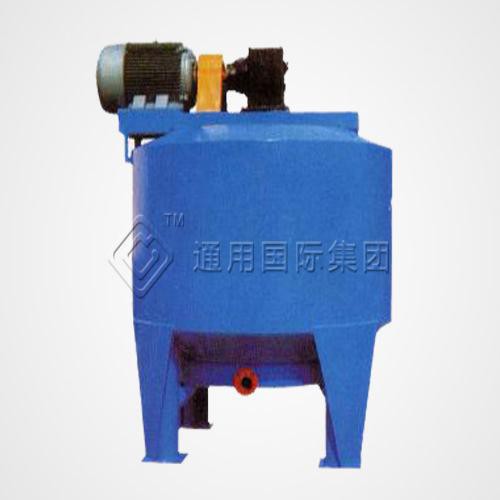

Large Pulping Machine

Large pulping machine also known as pulping machine 6m³, it adopts a three-helix rotor design to achieve fine processing of waste paper raw materials under high temperature and high concentration conditions.

The equipment uses a strong eddy current field generated by the high-speed rotation of the rotor to achieve complete fiber separation of waste paper under the dual effects of shear force and friction, while maintaining the stability of fiber length and strength.

During the disintegration process, the synergistic effect of mechanical action and deinking chemicals causes ink particles to be effectively peeled off from the fiber surface to form ink particles that can be separated by floatation.

This advanced pulping process provides an ideal pulp foundation for subsequent flotation deinking and deep purification, and ultimately produces pulp that meets the requirements.

1. Price description: Please contact the sales specialist for specific prices

2. Industry applications:

Livestock breeding industry

Agricultural production field

Packaging manufacturing industry (carton production)

Printing and publishing industry

Papermaking industry

3. Product use:

Egg packaging products (egg tray/egg box)

Fruit packaging tray
Bottled product buffer tray

Electronic product protective lining

4. Production capacity standard: Daily output ≥ 6,000 pieces

5. Matching mold: 60 egg tray special mold set

6. Power configuration: 37 kW high-efficiency motor

7. Customization service: Provide personalized customization solutions


• Waste paper feeding: waste paper is fed into the hydraulic pulper through a belt conveyor or manually, mixed with water and stirred to form a fiber suspension.
• Crushing and filtration: high-speed stirring completely decomposes the waste paper, and the suspension is filtered through a screen plate to remove impurities and obtain pure pulp.
• Pulp storage: the pulp is transported to the pulp pool through a pipeline for temporary storage, and chemical additives such as pigments can be added for conditioning.
• Homogenization: the pulper continuously stirs to ensure that the pulp is uniform and fine to meet production requirements.
• Molding production: the homogenized pulp is transported to the egg tray machine by a pulp pump, and is pressed and formed by a mold to produce various types of paper tray packaging.

✅ Efficient pulping: three-spiral rotor design ensures rapid decomposition of waste paper and high fiber integrity

✅ Energy-saving and stable: 37kW power system, stable operation, low energy consumption

✅ Widely applicable: adapt to a variety of waste paper raw materials to meet the packaging needs of different industries

✅ Intelligent customization: support mold and process adjustment to adapt to diversified production

As a professional egg tray machine manufacturer, AGICO can not only provide standardized production equipment, but also customize matching beating system solutions according to the specific needs of customers.

Choosing to cooperate with professional manufacturers, you will get the following advantages:

• Efficiency advantage: Our mature technical solutions can significantly shorten your equipment commissioning cycle
• Technical guarantee: We have a professional R&D team to ensure stable and reliable equipment performance

Perfect service:

• Pre-sales: Provide process solution design and site planning
• After-sales: Equipped with a professional technical support team
• Continuity: Establish a full life cycle service system for equipment

We are well aware that professional equipment manufacturing capabilities and a perfect service system are what customers really need. AGICO looks forward to escorting your production with professional strength.
