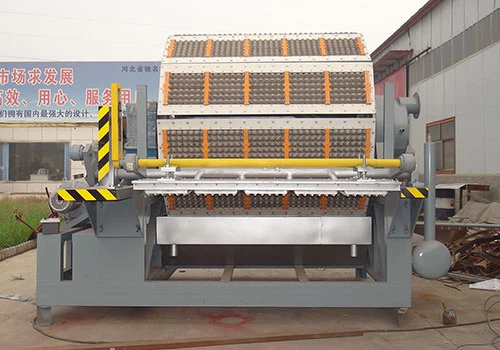

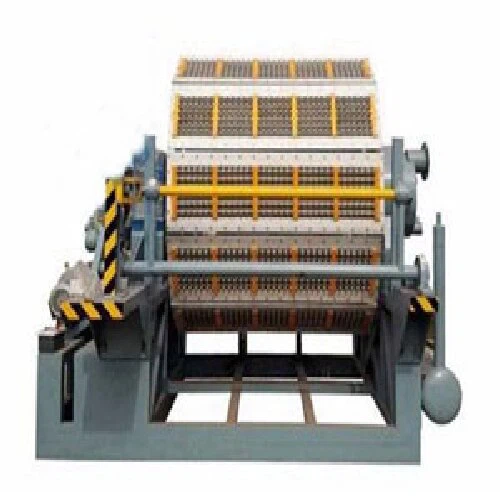

12-side Egg Tray Machine

1. High capacity intelligent production

• Adopting 12-side carousel moulding technology with 60 With 12-side rotary drum moulding technology and 60 precision moulds
• The production capacity of the single machine exceeds 6,000 pieces/hour, which is suitable for the automated production line of large-scale poultry industry and packaging enterprises.

2. Environmental protection and energy-saving design

• Low-energy power system: output per unit of energy consumption is 20% higher than the industry, optional biomass pellet/natural gas drying programme, recycling of wastewater and heat energy.
• 304 stainless steel core components: pulp tank, piping, template corrosion resistance, copper vacuum pumping disc wear-resistant and durable.

3. Flexible and customised production

• Multi-functional moulds: one-touch switching to produce egg trays, fruit trays, bottle trays, shoe supports and other pulp moulded products.
• Colour and function upgrading: support to add pigment, waterproof glue and other additives to meet individual needs.

4. Industrial-grade durability

• Key components imported configuration: Taiwan high-precision splitter, Japan NSK bearings, the whole machine life of more than 5 years.
• Maintenance-free design: Failure rate is less than 0.5%, providing 1 year free warranty.

Poultry Farming | Agricultural Nursery | Food Packaging | Electronic Product Lining | Shoe Manufacturing

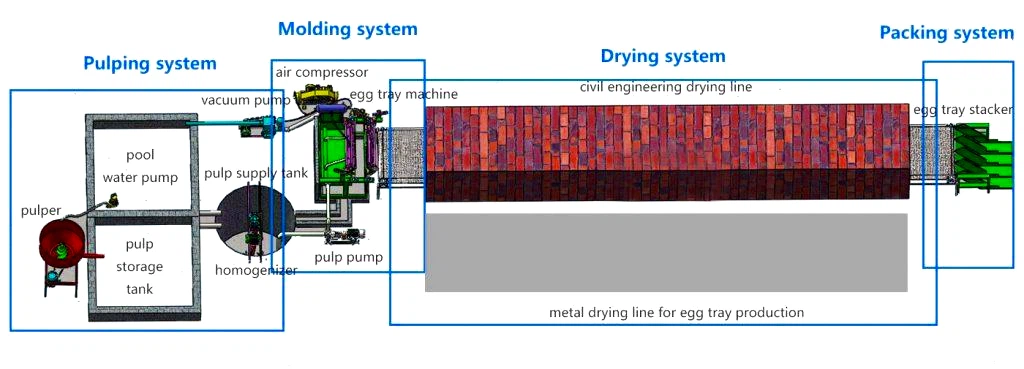

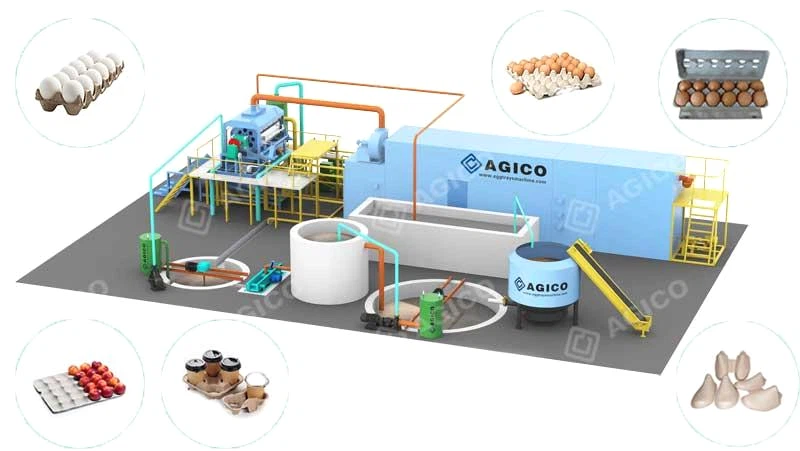

1. Raw material processing stage

Waste paper raw material is crushed by pulper and mixed with water to form primary slurry

Slurry is transported to the storage tank through pipeline, and fully stirred by mixer

2. Slurry blending stage

Homogeneous slurry is transported to the supply tank

Adjustment of slurry to the required concentration parameter in the supply tank

Up-to-standard slurry is pumped to the moulding machine to carry out moulding operation

3. Moulding and drying stage

Moulding machine outputs wet egg tray products

Products are dried by conveyor belt through drying hole to complete the process.

4. Finished product processing stage

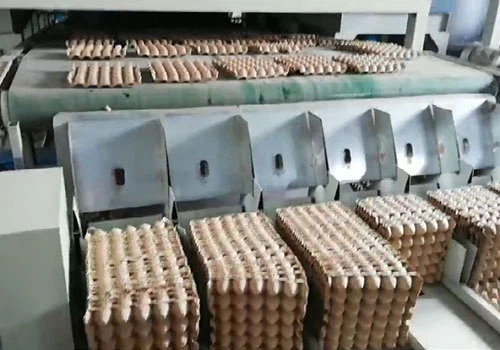

The dried egg trays are output through the conveyor belt

The automatic tray collection system is used for sorting and packing


Drainage water from the forming machine is pumped by a vacuum pump to the return tank

The return tank supplies water to the crusher and the storage tank

The water is used to achieve the closed-circuit recycling of water for the production.

• Drying Solutions: Single/Multi-layer Metal Drying Line, or Civil Conveyor Belt Drying Room
• Heat Source Options: Coal Fired/Gas Fired/Diesel Fueled/Biomass Pellets/Wood
• Customised Services: Mould Size, Capacity Configuration, Automated Packaging System

1. Multiple models available

Offers 1/4/8/12 sided models with capacity of 1000-6000 pcs/hour, adapting to different needs.

Customised drying/packaging system, compatible with apple trays, bottle trays, shoe trays and other paper-moulded products.

2. Energy efficient

Advanced power system to enhance production capacity, better output per unit of energy consumption than peers.

Wastewater and fuel recycling technologies are environmentally friendly and reduce operating costs.

3. Durable and maintenance-free

Optimised key components + high stability moulds, very low failure rate.

Durable material manufacturing, one year free warranty, more economical for long-term use.

4. Flexible and Convenient

Modular design, easy to install/disassemble/overhaul.

Quickly change moulds, multi-functional, save investment cost.

AGICO equipment provides customers with reliable production solutions with cost-effective, long-life, low-maintenance and environmental advantages.

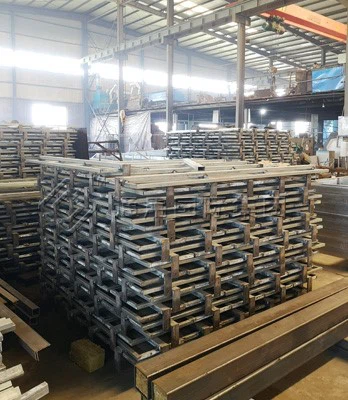

Single layer metal drying

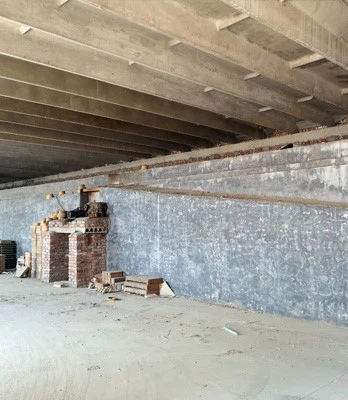

Civil engineering drying system

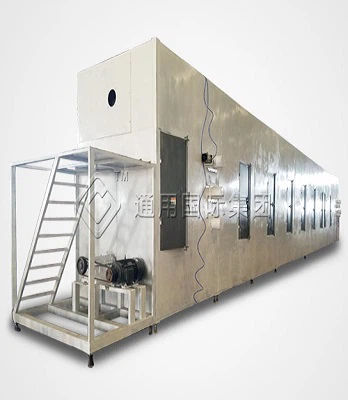

Multilayer metal drying

Get a Quote → Contact AGICO Sales Team to Match You with the Optimal Machine Model! !
