Egg Tray Production Line
Your Professional Egg Tray Production Line Supplier
AGICO is a high-tech enterprise focusing on the R&D and manufacturing of egg tray equipment. Since its establishment in 1997, after more than 20 years of steady development, the company has become an industry-leading manufacturer of egg tray machines and pulp molding equipment. We offer a range of models, including manual, semi-automatic and fully automatic egg tray machines, and are your trusted partner for pulp molding solutions.
-
![10000pcs/h Egg Tray Production Line]()
10000pcs/h Egg Tray Production LineThe 10000pcs/h egg tray production line is the latest innovation in the industry, designed to meet the growing needs of egg tray manufacturers.read more -
![7000pcs/h Egg Tray Production Line]()
7000pcs/h Egg Tray Production LineThis 7000pcs/h egg tray production line is with high output, up to 7000pcs/h or more, process raw materials into paper molding products, like egg trays, egg cartons, bottle trays, apple trays and...read more -
![6000pcs/h Egg Tray Production Line]()
6000pcs/h Egg Tray Production LineFrom raw materials to the final pulp molding products, 6000pcs/h egg tray production line can offer all the equipment for customers, like pulping machine, egg tray molding machine, drying machine...read more -
![5000pcs/h Egg Tray Production Line]()
5000pcs/h Egg Tray Production LineThe 5,000-piece/hour egg tray production line consists of a ZDS4 beater, a DT5×8 forming machine, a drying system (civil/metal optional), a palletizer, and a packaging machine. It achieves...read more -
![4000pcs/h Egg Tray Production Line]()
4000pcs/h Egg Tray Production LineThe 4,000 pieces/hour fully automatic egg tray production line is a highly efficient, energy-saving, and environmentally friendly pulp molding production system designed specifically for the...read more -
![3000pcs/h Egg Tray Production Line]()
3000pcs/h Egg Tray Production LineProducts Description Our 3,000-piece/hour egg tray production line is a highly efficient, stable, and adaptable production facility. Its optimized capacity design and excellent product...read more -
![1000pcs/h Egg Tray Production Line]()
1000pcs/h Egg Tray Production LineThis automated egg tray production line, with a capacity of 1,000 pieces per hour, utilizes pulp molding technology to produce a variety of environmentally friendly products, including egg trays,...read more -
![Manual Egg Tray Production Line]()
Manual Egg Tray Production LineThe manual egg tray machine production line mainly includes pulping system and moulding system.The production line is particularly suitable for areas with a dry and sunny climate. In these areas,...read more -
![Semi-Automatic Egg Tray Production Line]()
Semi-Automatic Egg Tray Production LineThe semi-automatic egg tray production line is an ideal combination of efficiency and cost-effectiveness in egg tray production, especially in medium-sized production. It is a clever blend of...read more -
![Fully Automatic Egg Tray Production Line]()
Fully Automatic Egg Tray Production LineThe fully automatic egg tray machine production line designed for large-scale industrial users. The production line supports a variety of drying mode configuration, which can be flexibly selected...read more
Why Choose Us
Quality Control
AGICO has passed ISO 9001 international quality management system certification and established a complete quality management system to ensure that its products meet international CE safety standards.
Customization Service
We provide personalized production line customization services for each customer. Whether you need a single device or a complete line configuration, AGICO can tailor the best solution for you.
Advanced Equipment
We have a modern production base of more than 100,000 square meters, equipped with advanced CNC machining centers, covering R&D design, precision manufacturing, and quality inspection, forming a complete production system.
Professional Team
We have a professional technical team with over 300 employees in total. We provide customers with comprehensive production line customization services, while our team of senior engineers offers technical support and process optimization solutions throughout the entire process to ensure the smooth implementation of projects.
Our Best-Selling Egg Tray Production Line
Manual Egg Tray Production Line
The manual egg tray machine production line mainly includes pulping system and moulding system.The production line is particularly suitable for areas with a dry and sunny climate. In these areas, the finished products can be dried naturally directly by sunlight without additional drying equipment, thus reducing production cost.
Semi-Automatic Egg Tray Production Line
The semi-automatic egg tray production line is an ideal combination of efficiency and cost-effectiveness in egg tray production, especially in medium-sized production. It is a clever blend of partially automated technology that improves production efficiency while keeping operating costs relatively low.
Fully Automatic Egg Tray Production Line
The fully automatic egg tray machine production line designed for large-scale industrial users. The production line supports a variety of drying mode configuration, which can be flexibly selected according to the actual needs to ensure efficient, stable and safe continuous production.

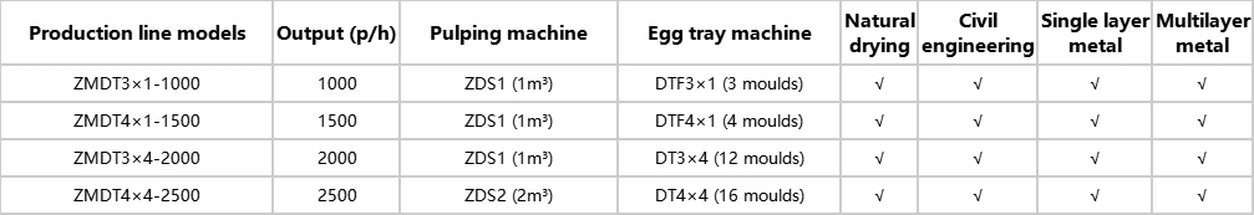

Egg Tray Production Line Specification
Advantages of Egg Tray Production Line
Cost-Effective: Egg tray production lines are a cost-effective way to package eggs. They are made from recycled paper, which is an inexpensive material, and the production process is automated, reducing the need for manual labor. This, in turn, reduces labor costs and boosts productivity.
Customizable: Egg tray production lines are customizable, allowing chicken farm owners to produce egg trays of different sizes, shapes, and colors. This is particularly useful for farms with unique egg packaging requirements.
Environmentally Friendly: Egg tray production lines are environmentally friendly as they use recycled paper as the raw material. This helps to reduce waste and promote sustainable production.
Easy to Operate: Egg tray production lines are easy to operate, with minimal training required. The production process is automated, reducing the need for manual labor, and the machines are designed for easy maintenance.
High-Quality Output: Egg tray production lines produce high-quality egg trays that are durable and provide excellent protection for eggs during transportation.
Component Of Egg Tray Production Line
Put the raw materials (various waste paper) into the pulping machine, and after about 40 minutes of high-concentration stirring, the pulp will be automatically transported to the pulp supply tank for storage and stirring. Then the pulp is transported by the supply pump to the mixing tank and stirred to the required concentration of pulp. Then put into the supply tank and transported to the forming machine through the supply pump.
The forming machine of egg tray production line absorbs the pulp (delivered by the supply pump to the hopper of the forming machine) to the mould of the forming machine. The vacuum system sucks the pulp onto the mould of the forming machine and absorbs the excess water into the water vapor separation tank. The water pump pumps the water into the pool for storage. The mold of the egg tray maker absorbs the pulp to form, and then the manipulator of the molding machine takes out the finished product and sends it to the drying conveyor belt.
Semi-finished egg trays are transported to the egg tray dryer for dehydration. Hot air circulation can quickly remove moisture from the egg tray while ensuring the quality of the egg tray. Metal drying line has single layer and the multiple layer, so the customer can choose according to the actual production scale.
After drying, finished egg trays are packed by collector and a baler machine. This system can greatly compress the space of the egg tray, making it more convenient for storage and transportation.
The Working Process of Egg Tray Production Line
★The pulping section:
● Feed clean water into hydraulic pulper to it's 60%~70% level, scale proper weight of waste paper and load inside the hydra pulper. Color dyes can be added as well simultaneously.
● The waste paper pulp stays 20~40 minutes inside the pulper, depending on paper fibre, and then pumped into vibrating screener. Water is added during the screening for pulp dilution. The impurities such as nails, metal pieces, plastic films, etc will be removed.
● The pulp goes to NO.1 pool before entering pulp miller where it will be refined into average consistency. After grinding, the pulp goes to NO.2 pool before entering the egg tray molding machine.
● Another NO.3 pool can be built as well as stand by pools, or for extra pulps. Chemicals to be added include aluminum sulfate and other water proof agents.
★The molding section
● Start the rotary egg tray molding machine and pump the pulp inside, the extra pulp will flow back to pool NO.1 automatically.
● Turn on vacuum pump for vacuum production. Water for vacuum pump operation should be clean and circulated. The water separated by the vacuum pump from the molding machine will flow to the pulp pool for another circulation.
● For each stroke of egg tray molding, water will be sprayed out from the nozzles to clean the molds. It's a very important unit which not only cleans the mold but also removes extra burrs on the egg tray, making sure the egg tray produced has a smooth edge.
★The drying section:
● With each stroke of egg tray molding, the transfer arm move the wet trays into the chain converyor which will enter the drying tunnel for the removal of moist. There are two types of drying oven, multi-layer type and single layer type.
★Counting, Reshaping and Packaging:
● At the end of the drying tunnel, there is an automatic counting device to account trays produced. Reshaping process are required for products as egg box and other stuff which requires flat apperance. The trays produced are finally packaged by plastic films or carton box.
Precautions for Using Egg Tray Production Line
Before using the machine, you need to check whether the power cord of the machine is safe and keep it away from fire.
Do not touch the machine during operation to prevent accidental injury.
When adding raw materials to the machine for manufacturing, you should pay attention to the amount of raw materials added to avoid affecting the normal use of the machine.
Regular maintenance of the machine is necessary to ensure its efficient and safe operation.
Our Services
Pre-sales service
We will provide professional technical consultation and equipment selection suggestions based on the specific needs of customers to ensure that the selected solution meets the actual application scenario and has the best cost-effectiveness.
In-sales service
An experienced team of engineers will follow up throughout the process, provide equipment installation guidance, system debugging and performance optimization services, ensure the stable operation of the equipment, and issue a detailed test acceptance report.
After-sales service
Provide one-year free warranty service (except for wearing parts and man-made damage), quickly respond to customer repair needs, ensure timely elimination of faults, and minimize equipment downtime.
Long-term maintenance guarantee
Collect user feedback, continuously optimize services, and ensure long-term and efficient operation of equipment.
Note
The specific service terms shall be subject to the formal contract agreement.
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
Our Certificate
FAQ
As one of the leading egg tray production line manufacturers in China, we warmly welcome you to buy high quality egg tray production line for sale here from our factory. Good service and reasonable price are available.
