Product Description

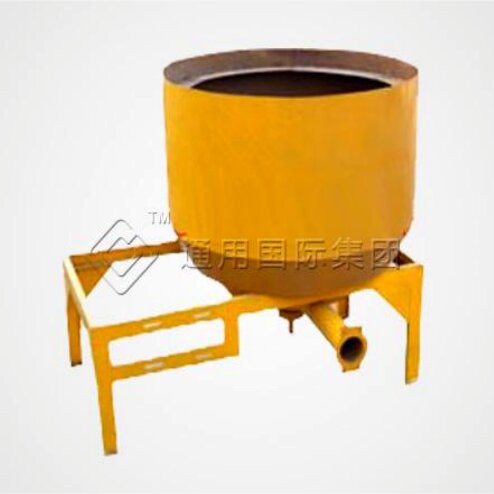

Mini pulping machine also known as pulping machine 1m³ ,designed for pulp molded products, high efficiency and energy saving, suitable for a variety of packaging product production lines.

In the egg tray production process, the fineness of the pulp directly determines the quality of the final product.

Fine pulp can not only improve the strength and durability of the egg tray, but also ensure its smooth appearance and reduce the breakage rate. An efficient and stable pulping system is the core configuration of every modern egg tray production line.

This system needs to have efficient fiber separation capabilities, precise moisture control and good temperature management to ensure the quality of the pulp.

Our carefully developed pulping solution, with its convenient operation and perfect system, significantly improves the uniformity and forming performance of the pulp, providing reliable guarantee for the production of high-quality egg trays.

The solution adopts an advanced automatic control system, which can monitor and adjust various parameters in the pulping process in real time to ensure the consistency and stability of the pulp.

In addition, we also pays attention to environmental protection and sustainable development, and uses low-energy consumption equipment and environmentally friendly materials in the pulping process to reduce the impact on the environment.

parameters of Mini Pulping Machine

Applicable industries: agricultural breeding, paper packaging, printing and papermaking

Main uses: production of pulp molded products such as egg trays, fruit trays, bottle trays and electronic product linings

Supporting capacity: suitable for 1000-2000 pieces/hour egg tray machine

Mold configuration: supports 3-4 mold position egg tray machine synchronous production

Motor power: 7.5kW (energy-saving design)

Service support

Accept customized requirements

For price details, please contact the sales manager

Egg tray production line process

1. Pulping system
After the waste paper is shredded and screened, chemical additives are added to make a homogeneous pulp for molding.

2. Molding system
The pulp is evenly attached to the mold through vacuum adsorption, and the wet blank is automatically transferred to the drying system after being formed.

3. Drying system
Using heat sources such as gas and steam, intelligently controlling temperature and humidity to achieve efficient and uniform drying.

4. Packing system
Automatically count, stack, pack, and output standardized finished products for easy storage and transportation.

Egg Tray Production Process

Working principle of mini pulping machine

The high-concentration hydraulic pulper uses three spiral rotors to break up waste paper in a high-temperature and high-concentration environment to maintain the original pulp characteristics.

The rotation of the rotor forms a strong vortex, which causes intense friction between waste paper to achieve fiber separation.

At the same time, the mechanical friction between fibers cooperates with chemical action to effectively remove ink and impurities, creating conditions for subsequent deinking and purification processes, and ultimately producing high-whiteness pulp.

Our innovative integrated pulping system adopts a compact design, which has significant advantages in space utilization, installation convenience and operational economy.

The mini pulping machine is particularly suitable for small and medium-sized egg tray production lines. Its modular structure can reduce infrastructure costs by more than 30% and shorten the installation cycle by 50%.

It has been successfully applied in more than 20 countries and regions around the world and has become the preferred solution for many customers.
